ZCG UHF Sidemount dipole, 400-520MHz

$255.00

Availability: Only 2 left in stock SKU: B44 Category: Tags: ,

Description

Broadband UHF sidemount dipole, aluminium, 400-520 MHz, 250W, N-type female, 500mm cable, 0 dBd – 290mm

Product code: B44

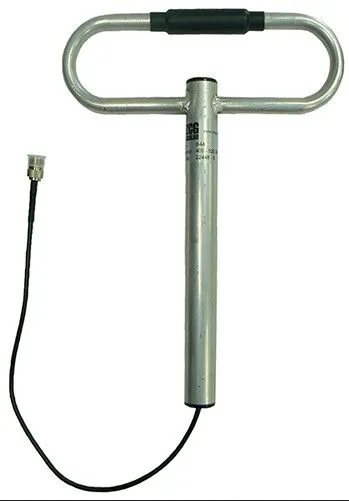

The B44 is a broadband UHF
sidemount dipole, designed and manufactured for UHF communications,
Terrestrial Trunk Radio (TE.T.RA) or any application within the
400-520MHz. The small design of the B44 means its will take up minimal
space on your mast/tower or structure. Stacking in an array formation
will increase gain and give a more directional pattern.

Specifications

Frequency

400-520 MHz – UHF, TETRA, LMR and GRN compatible

Bandwidth

Full frequency range stated – 120 MHz

Gain

0 dBd for a single bay, stacking increases gain

Tuning

Factory at 1.5:1 VSWR

Impedance

50 Ohms – nominal

Maximum Power

250 Watts

Polarisation

Vertical

PIM 3rd Order (2x20W)

better than -122dBc

DC grounded

Yes

Construction

Welded aluminium folded dipole, stand-off mount section, 500mm external RG58A/U and N-female connector

Connector

N-type female fitted to 500mm RG58A/U stranded core coaxial cable

Dimensions

Dipole height: 290mm, Dipole stand-off: 270mm x 32mm O.D.

Weight – kg

0.5

Wind load at 160kph

1.274kg, 0.012kN
