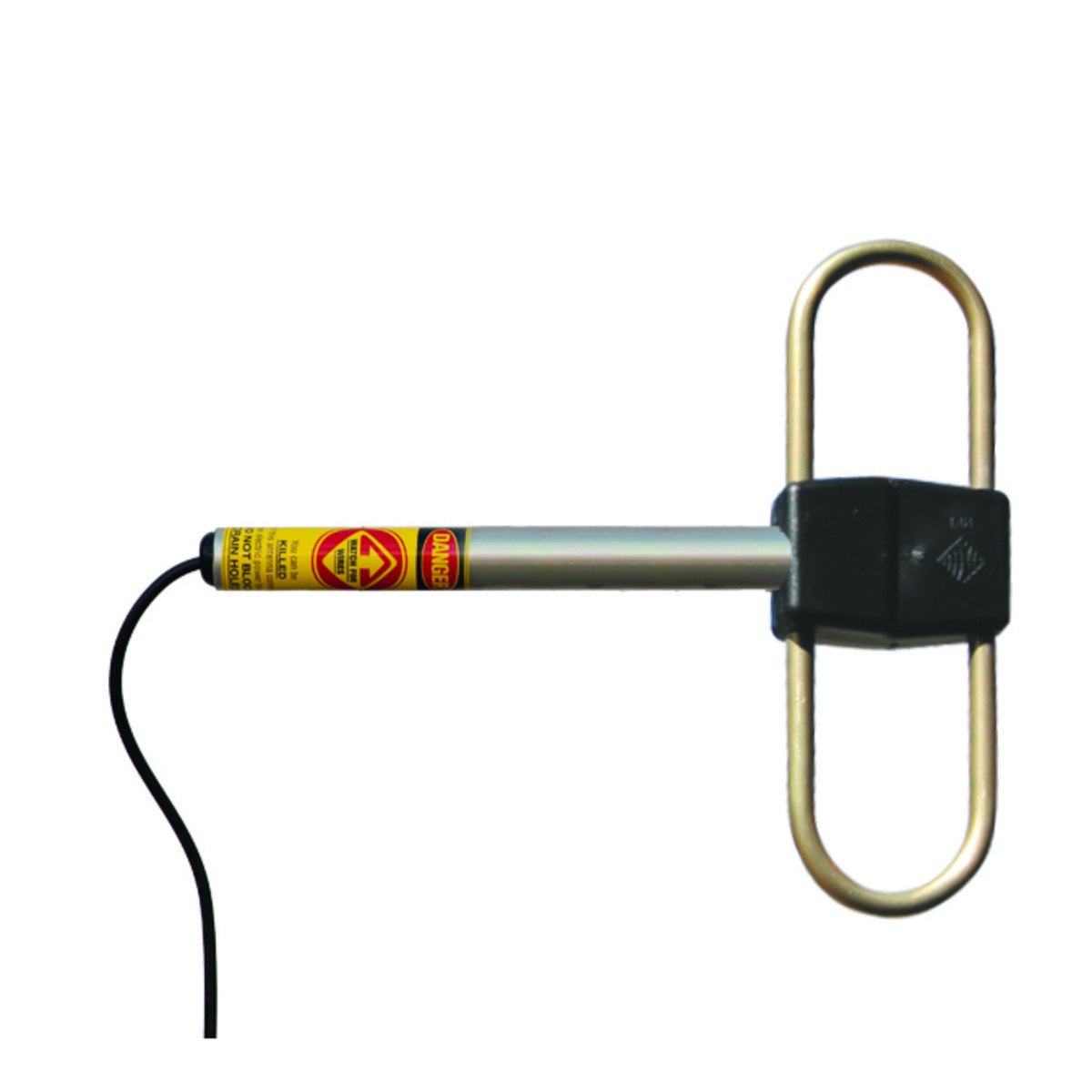

RFI UHF Side Mounted Dipole 400-520MHz

$250.00

Availability: Only 1 left in stock SKU: SMD41-67-P Category:

Description

RFI UHF Side Mounted Dipole 400-520MHz

Key Features

  • Tuned to full bandwidth
  • Unity gain
  • All welded, full folded dipole construction
  • Easily mounted and installed with single clamps.

Usage

  • The SMD4-67 is of all welded aluminium construction
  • The feed point is protected by an ABS cap, with the internal PTFE
    based cable construction providing excellent intermodulation performance
    (-150dBc)
  • The stainless steel SMD41-67 is electrically identical to its
    aluminium counterpart and is recommended for corrosive environments,
    this antenna is available on request
  • All of the SMD4 series antennas are directly DC grounded for superior
    lightning protection and the reduction of precipitation static noise.

Specifications / Frequency

Weight [kg]0.6BrandRFILength [mm]400Frequency MHz400 – 520Horizontal BeamwidthTypically 220° at ¼ l antenna – mast spacingPassive IM 3rd Order (2x20W) dBc<-140Vertical BeamwidthTypically 70° at ¼ l antenna - mast spacingTuned BandwidthEntire bandConstructionStainless steelMounting Area100mm x 25mm diam. Stainless SteelTermination4.3-10 female with short RG142 cable tailVSWR<1.5:1PolarisationVerticalPower [W]500Frequency Range [MHz]400 - 520Connector4.3-10(F)Antenna TypeSide Mounted DipolesAntenna ApplicationBase Station AntennaAntenna FeaturesPIM RatedFrequency BandUHF 380-520 MHzAntenna ConfigurationSISO
