Description

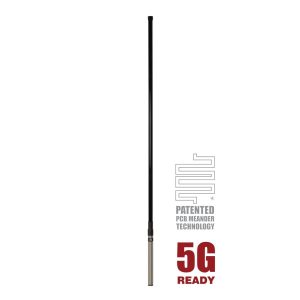

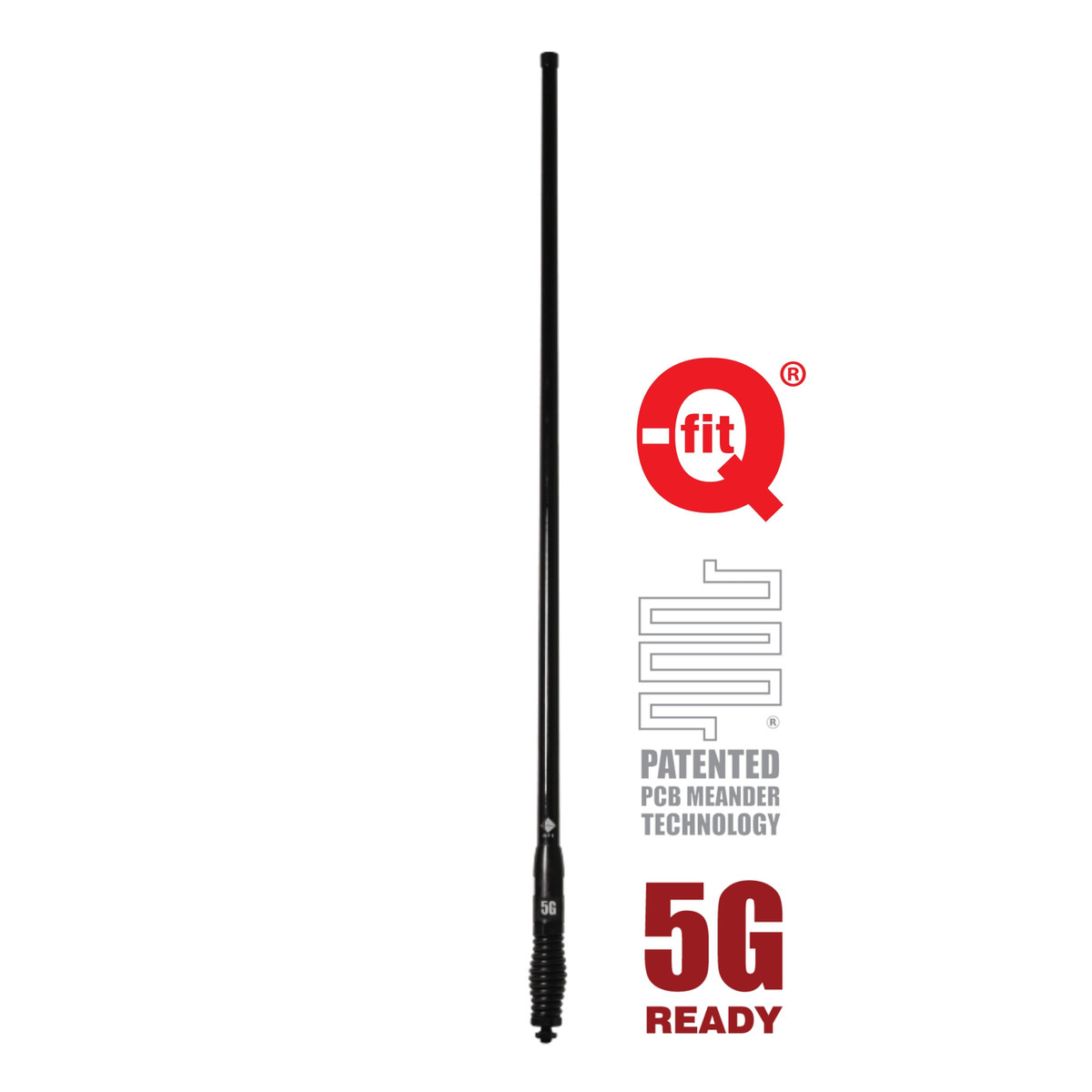

RFI 5G LTE 7.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) – Black

SKU: CDQ8197-B

The new CDQ8100 Series
5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170
MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when the signal is poor.

The
outstanding performance of the CDQ8100 series lies in the use of the
patented Meander™ radiating elements. These Meander™ circuits are
coupled together to deliver extraordinary consistency in gain, coverage
pattern, and bandwidth. The result is a unique antenna able to operate
across all mobile phone networks globally, housed in one unit.

It is our flagship product and is designed for harsh Australian

conditions. Includes an integrated spring with threaded stud/nut for

easy installation on vehicles. The CDQ8100 Series whips can be removed

via the integrated N male connector in the whip and the N female

connector on the spring assembly.

Key Features:
– Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
– Ideal for new 5G/LTE networks with true multi-band coverage.
– High gain across all bands making it suiting fringe and rural applications.

Q-Fit® removable whip system for ease of removal in low-height

environments such as multi-story car parks, car washes, or for security.

BrandRFIMounting16mm mounting holeLength [mm]1210Frequency MHz698-960, 1710-2170 & 2300-2700MHzTuned BandwidthFullRadome Diameter Mm22.5 – 15.6 TaperedVSWR<2.5:1Nominal Gain [dBi]7.5 / 4.5 / 5.5Power [W]10Cable And Connector5m of 9006 low loss cable terminated with SMA male connectorPackagingRetail Hang SellAntenna TypeCollinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring MountAntenna ApplicationVehicle AntennaAntenna FeaturesMulti Band Capable, OmnidirectionalFrequency BandMulti-Band 700 to 2700
