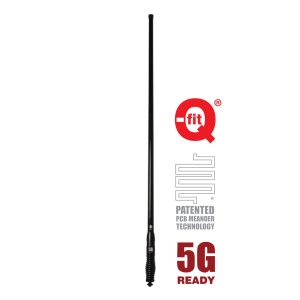

RFI 5G LTE 6.5dBi Collinear Antenna


SKU: COL8195 Category:


The new COL8100 Series 5G LTE antennas not only cover the 4G LTE

bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G

LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when the signal is poor.


outstanding performance of the COL8100 series lies in the use of the

patented Meander™ radiating elements. These Meander™ circuits are

coupled together to deliver extraordinary consistency in gain, coverage

pattern, and bandwidth. The result is a unique antenna able to operate

across all mobile phone networks globally, housed in one unit.

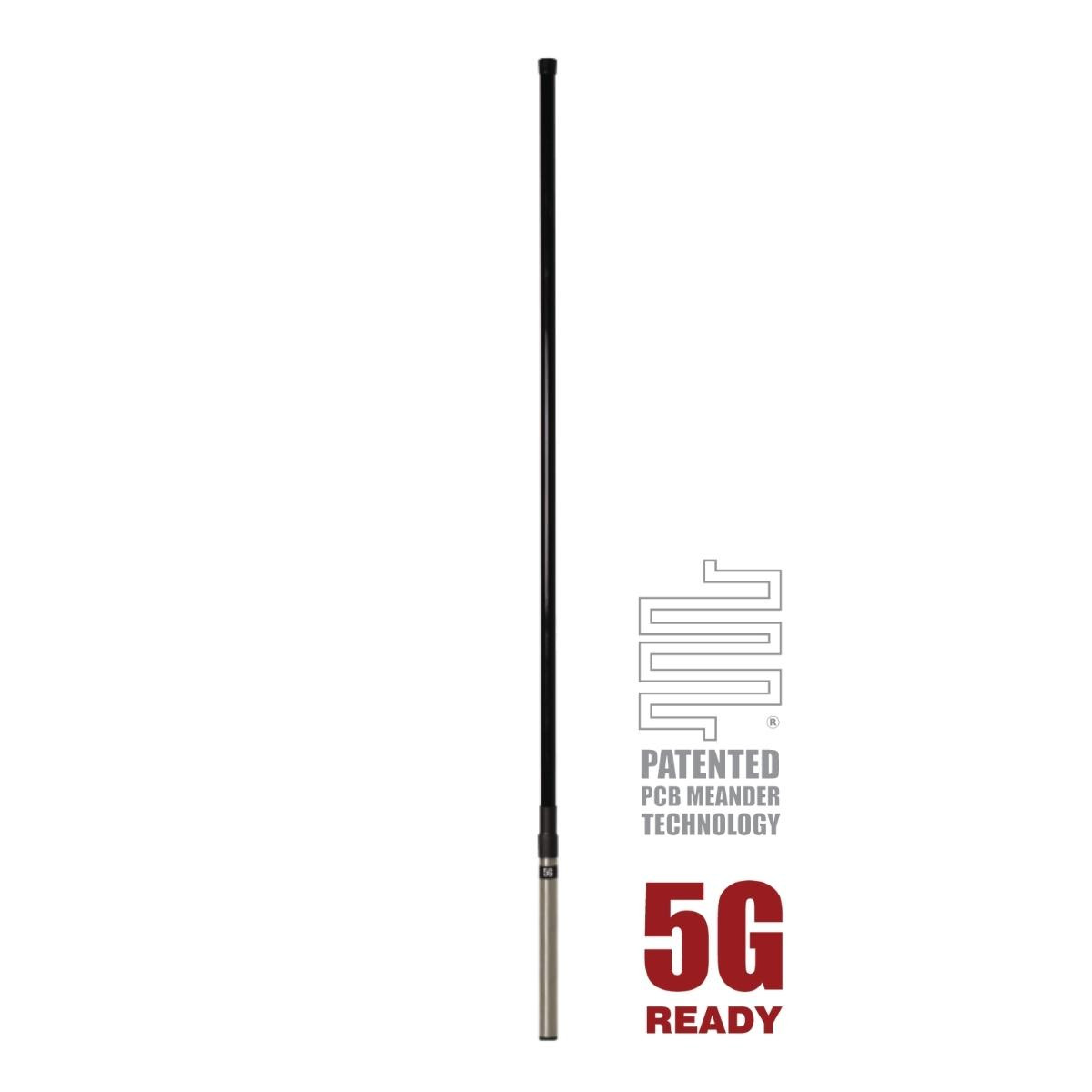

The COL8100 Series is supplied with a 200mm x 19mm stainless

steel mounting tube which is designed to be mounted to a vertical

support structure using the two supplied stainless steel hose clamps.

Key Features:
– Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
– Ideal for new 5G/LTE networks with true multi-band coverage.
– High gain across all bands making it suiting fringe and rural applications.

Height [mm]965BrandRFIIP RatingIP65Operating Temperature Range [°C]-45 to +85Frequency MHz698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHzHorizontal BeamwidthOmni-directionalVertical Beamwidth25 / 30 / 20 / 15Tuned BandwidthFullConstructionBlack radome, 200 x 19mm stainless steel mounting tubeMounting Area200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied)Radome Diameter Mm15.6VSWR<2.5:1PolarisationVerticalNominal Gain [dBi]6.5 / 4.5 / 5.5 / 6.5Power [W]10Wind Load (Thrust) @ 160km/h N240ConnectorSMA(M)Cable And Connector10m of RG58 (9006) low loss cable terminated with SMA male connectorPackagingRetail Hang Sell PackCable TypeRG58ColourBlackAntenna TypeCollinears, Ground Independent, Meander, Omni SISO, Spring Mount, Stud MountedAntenna ApplicationBase Station Antenna, Terminal AntennaAntenna FeaturesMulti Band Capable, OmnidirectionalFrequency BandMulti-Band 700 to 3800
