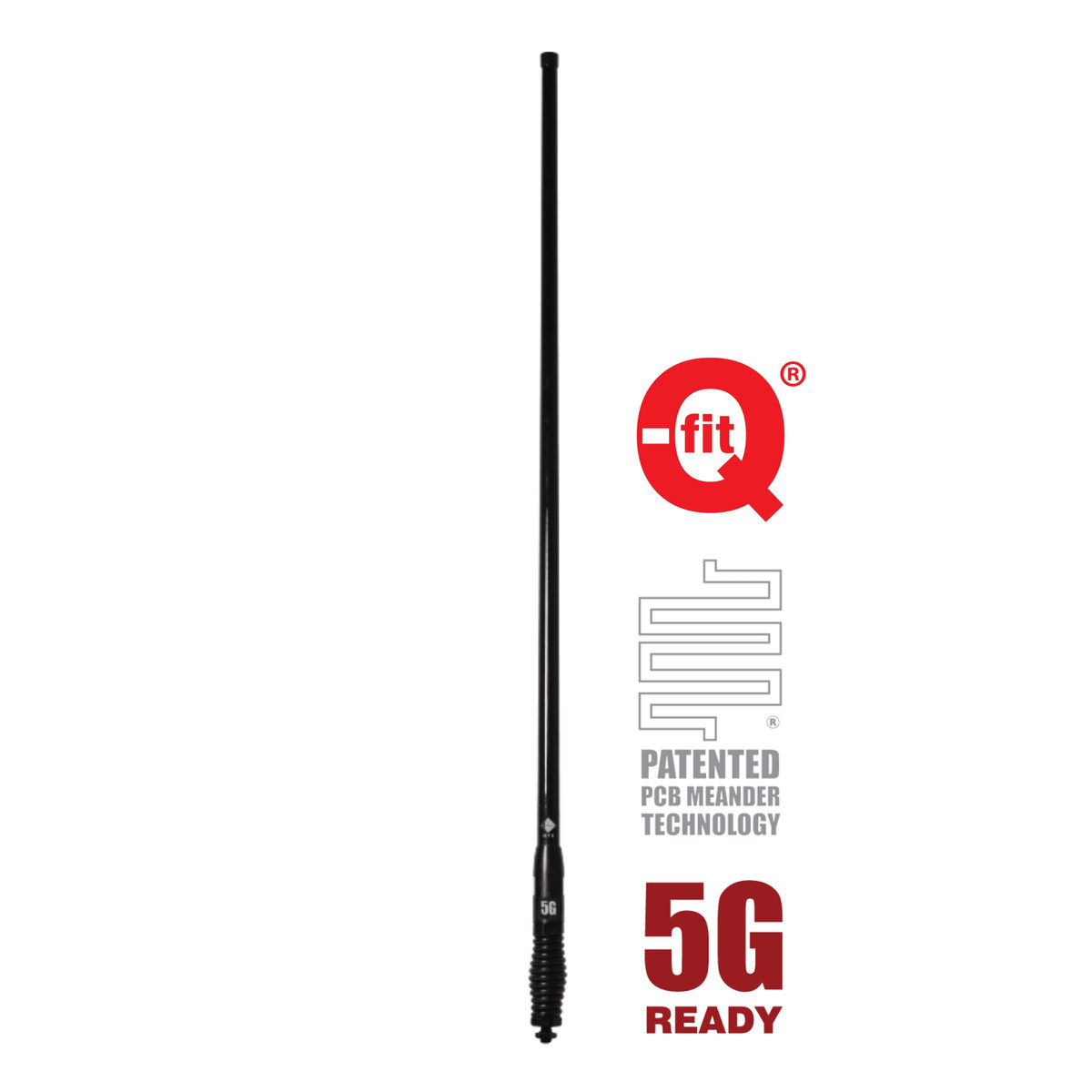

RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz)


SKU: CDQ8195-B Category:


The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE

bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G

LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when the signal is poor.

The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate

across all mobile phone networks globally, housed in one unit.

It is our flagship product and is designed for harsh Australian conditions. It Includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed

via the integrated N male connector in the whip and N female connector on the spring assembly

Key Features:

– Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.

– Ideal for new 5G/LTE networks with true multi-band coverage.

– High gain across all bands making it suiting fringe and rural applications.

Q-Fit® removable whip system for ease of removal in low-height

environments such as multi-story car parks, car washes, or for security.

BrandRFILength [mm]970Frequency MHz698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHzHorizontal BeamwidthOmni-directionalTuned BandwidthFullMounting Area13-16mm diameter holeVSWR<2.5:1PolarisationVerticalNominal Gain [dBi]6.5 / 4.5 / 5.5 / 6.5Power [W]10Cable And Connector5m RG58 (9006) low loss cable terminated with SMA male connectorWhip MaterialFibreglassPackagingRetail Hang Sell BagColourBlackAntenna TypeCollinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Stud MountedAntenna ApplicationMobile Antenna, Vehicle AntennaAntenna FeaturesMulti Band Capable, OmnidirectionalFrequency BandMulti-Band 700 to 2700
