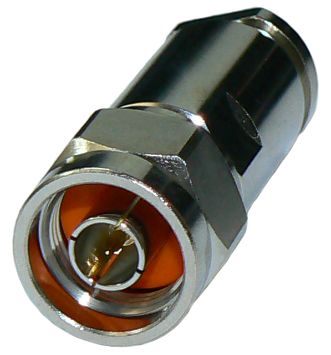

ZCG N-Type Male Solderless Clamp Connector for RU400

$25.36

Availability: Only 1 left in stock SKU: 7930-4 Category:

Description

N-type male solderless, clamp-style plug connector for RU400 solid core coaxial cable, DC-11 GHz, 50 Ohms – nickel plated

The NM-7930-4 is a solderless N-type male, clamp-style coaxial connector for RU400 low loss, solid copper core coaxial cable (SKU: 7890-100/7890-300) or RG8 coaxial cable. The solderless configuration is suitable for on-site locations where soldering isnt practicle or possible.

SPECIFICATIONS

FREQUENCY

DC to maximum 11 GHz

IMPEDANCE

50 Ohms – nominal

MAXIMUM POWER

500 Watts, 1kW peak

POLARISATION

Straight – solderless clamp-style

CONSTRUCTION

Nickel plated body and clamp nut, gold plated centre pin and PTFE insulators

CONNECTOR

N-type male / N-male

WEIGHT – KG

0.076
