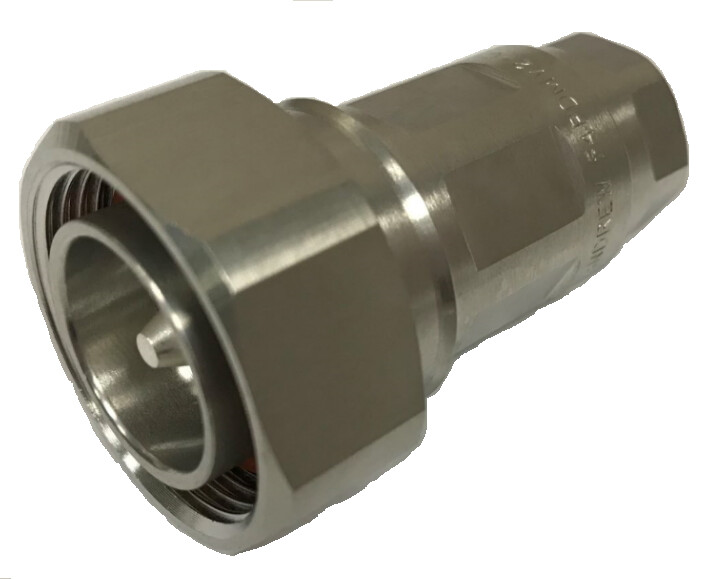

Commscope 7-16 DIN(M) Connector; 1/2″ FSJ4

$31.30

SKU: F4PDMV2-C Category:

Description

Specifications

Product Classification

Product Type

Wireless and radiating connector

Product Brand

HELIAX®

Product Series

FSJ4-50B | FSJ4RK-50B

Ordering Note

CommScope® standard product (Global)

General Specifications

Body Style

Straight

Cable Family

FSJ4-50B

Inner Contact Attachment Method

Captivated

Inner Contact Plating

Silver

Interface

7-16 DIN Male

Mounting Angle

Straight

Outer Contact Attachment Method

Crush-flare

Outer Contact Plating

Trimetal

Pressurizable

No

Dimensions

Length

50.04 mm | 1.970 in

Diameter

34.54 mm | 1.360 in

Nominal Size

1/2 in

Electrical Specifications

3rd Order IMD at Frequency

-120 dBm @ 910 MHz

3rd Order IMD Test Method

Two +43 dBm carriers

Insertion Loss Coefficient, typical

0.05

Average Power at Frequency

1.0 kW @ 900 MHz

Cable Impedance

50 ohm

Connector Impedance

50 ohm

dc Test Voltage

2500 V

Inner Contact Resistance, maximum

0.8 mOhm

Insulation Resistance, minimum

5000 mOhm

Operating Frequency Band

0 – 7500 MHz

Outer Contact Resistance, maximum

1.5 mOhm

Peak Power, maximum

15.6 kW

RF Operating Voltage, maximum (vrms)

884 V

Shielding Effectiveness

-110 dB

Return Loss/VSWR

Frequency Band
VSWR
Return Loss (dB)

0–2200 MHz

1.032

36.06

2200–2700 MHz

1.046

32.96

2700–3000 MHz

1.052

31.92

Mechanical Specifications

Attachment Durability

25 cycles

Connector Retention Tensile Force

889.64 N | 200.000 lbf

Connector Retention Torque

5.42 N-m | 47.998 in lb

Coupling Nut Proof Torque

24.86 N-m | 220.003 in lb

Coupling Nut Retention Force

1000.85 N | 225.000 lbf

Coupling Nut Retention Force Method

MIL-C-39012C-3.25, 4.6.22

Insertion Force

200.17 N | 45.000 lbf

Insertion Force Method

IEC 61169-1:15.2.4

Interface Durability

500 cycles

Interface Durability Method

IEC 61169-4:9.5

Mechanical Shock Test Method

MIL-STD-202F, Method 213B, Test Condition C

Environmental Specifications

Operating Temperature

-55 °C to +85 °C (-67 °F to +185 °F)

Storage Temperature

-55 °C to +85 °C (-67 °F to +185 °F)

Attenuation, Ambient Temperature

20 °C | 68 °F

Average Power, Ambient Temperature

40 °C | 104 °F

Corrosion Test Method

MIL-STD-1344A, Method 1001.1, Test Condition A

Immersion Depth

1 m

Immersion Test Mating

Mated

Immersion Test Method

IEC 60529:2001, IP68

Moisture Resistance Test Method

MIL-STD-202F, Method 106F

Thermal Shock Test Method

MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C

Vibration Test Method

MIL-STD-202F, Method 204D, Test Condition B

Water Jetting Test Mating

Mated

Water Jetting Test Method

IEC 60529:2001, IP66

Packaging and Weights

Weight, net

136.08 g | 0.3 lb

Regulatory Compliance/Certifications

Agency
Classification

ISO 9001:2015

Designed, manufactured and/or distributed under this quality management
system

ROHS

Compliant

CHINA-ROHS

Below maximum concentration value

REACH-SVHC

Compliant as per SVHC revision on www.commscope.com/ProductCompliance

UK-ROHS

Compliant Installation Instructions
