RFI UHF CB 5dBi Collinear Antenna


Availability: Out of stock SKU: CDQ5000-B Category: Tags: ,

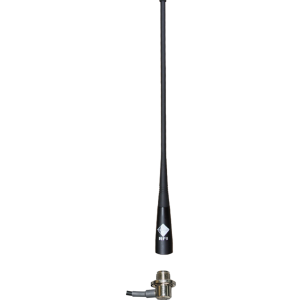

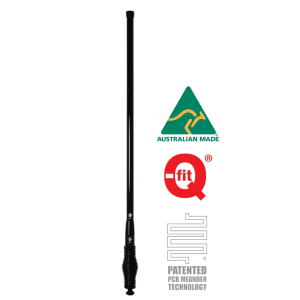

RFI CDQ5000-B 5dBi Black UHF CB Collinear Antenna With 5m Cable With FME Plug and UHF Adaptor

CDQ5000 antenna is based on our successful CD5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.

The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
– Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
– 5 dBi gain across the full 477 MHz UHF CB band. – Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
– Ground Independent

Whip MaterialPCB radiating element housed in tapered high impact fibreglassCable And Connector5m of 9006 low loss cable terminated with FME female connector and UHF adaptorTuningSupplied pre-tunedBand477MHzPower w25Nominal Gain Dbi5VSWR<1.5:1Radome Diameter Mm22.5 - 15.6Tuned bandwidthFull. No tuning requiredFrequency MHz477Length [mm]1010MountingThreaded StudBrandRFI
