RFI CD34-71-53 UHF CB 4dBi Mopole 477MHz Antenna


Availability: Only 2 left in stock SKU: CD34-71-53 Category: Tags: , ,


RFI CD34-71-53

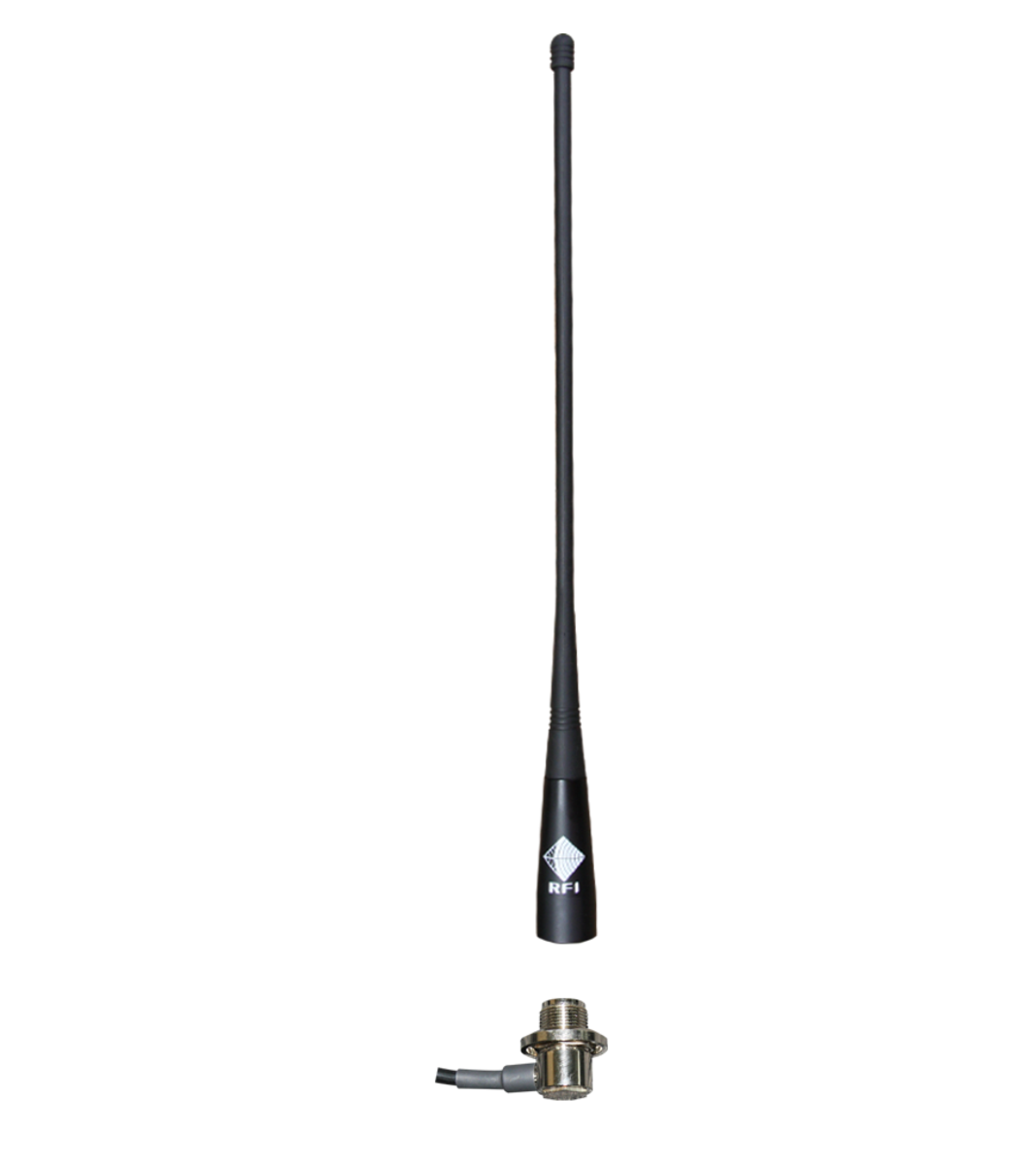

The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror, gutter or roof rack. Mounting in such positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.

Features: The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

The antenna is available in a stud mounted version or MBC base with removable whip. Both are supplied with 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.


• Ground plane independent design allows installation in almost any location

• Available in stud or MBC mount

• Robust UV stable base & flexible whip

BrandRFIFrequency MHz476 – 477Tuned BandwidthFull. No tuning requiredVSWR<1.5:1Nominal Gain [dBi]4Power [W]50Frequency Range [MHz]476 - 477ConnectorFME(F), UHF(M)Band477MHzTuningSupplied pre-tunedCable And Connector5.0m RG58C/U cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor.Whip Length mm330Whip MaterialStainless Steel braid over moulded with UV resistant TPUAntenna TypeOmniAntenna ApplicationVehicle AntennaFrequency BandUHF 380-520 MHzAntenna ConfigurationSISO
