ZCG RIGHT-ANGLE UHF FEMALE CABLE ASSEMBLY

$45.00

SKU: RA-4.7 Category:

Description

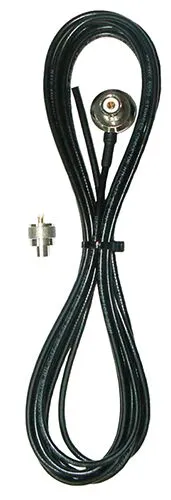

4.7 metre RG58A/U right-angle UHF female cable mount base assembly, UHF male PL259 supplied not fitted

PRODUCT CODE: RA-4.7

The RA-4.7 right-angle UHF female cable mount base is suitable for mounting any antenna with a UHF male termination such as the GID-400-QF series or GRH-TPM in either a vehicle mount or fixed position location. The RA-4.7 4.7 metre cable mount base has 4.7 metres of RG58A/U stranded with a UHF Male PL259 solderless connector supplied, not fitted. Mount the RA-4.7 cable mount base with a minimum 16mm hole or appropriate bracket with a 16mm hole such as the MRM-SS mirror mount bracket

SPECIFICATIONS

FREQUENCY

Suits VHF or UHF capabilities

TUNING

No tuning required, trim cable to required length prior to connector fitting

IMPEDANCE

50 Ohms

CONSTRUCTION

Chrome right-angle termination, 4.7m RG58A/U cable and nickel plated termination

CONNECTOR

Right Angle Base: UHF Female Termination: UHF Male supplied not fitted

DIMENSIONS

Cable: 4.7 metres
