Description

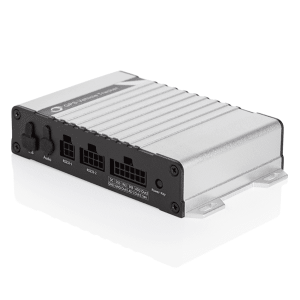

T333L
4G Vehicle GNSS Tracker

The T333L is a brand new 4G vehicle tracker. In addition to real-time tracking, the device has two-way calling and remote listen-in functions. It provides excellent and stable performance in vehicle tracking and fleet management.

T333L
4G Vehicle GNSS Tracker

All devices can be monitored through the JV Protection Services Tracking Portal.

FEATURES

Cost-effective
Lower price and more diversified functions for your choice.
Two-way Communication
External speaker and microphone, two-way communication can be realized.
Multifunctional
Support camera, fuel/temperature sensor, LED display, RFID/iButton and etc.
Driving Behavior Analysis
Detect driver behaviors, such as the driver
fatigue, idling, harsh acceleration/braking, harsh cornering, collision, etc.

APPLICATIONS

SPECIFICATIONS

Dimension
105 mm x 65 mm x 26 mm
Weight
190g
Power supply
DC 11–36 V/1.5 A
Backup battery
400 mAh/3.7 V
Power consumption
Standby mode: 5mA
Normal mode: 65mA
Working hour
47 hours in power-saving mode
4.7 hours in normal mode
Operating temperature
-20°C to 55°C (normal-temperature battery)
-5°C to 75°C (high-temperature battery)
Operating humidity
5% to 95%
LED indicator
Green indicator showing the GSM signal
Blue indicator showing the GPS signal
Button/Switch
1 SOS button (for sending SMSs or dialing)
1 power button
Memory
8 MB buffer
Sensor
3-axis accelerometer (used to wake the device up by vibration and detect towing alerts)
Frequency band
T333-ER:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8
Positioning accuracy
2.5m
I/O port
3 digital inputs (2 negative inputs and 1 positive input)
2 analog detection inputs
2 outputs
1 RS232 port
1 USB port
1-Wire® iButton
1-Wire® temperature sensor

ACCESSORIES

T333L with a built-in battery
I/O cable + SOS button
External 4G antenna
External GPS antenna
CD download card

OPTIONAL ACCESSORIES

Camera
Speaker and microphone
RFID reader
iButton
A53 fuel level sensor
Ultrasonic fuel level sensor
Tire pressure sensor
A52 digital temperature sensor + A61 sensor box
LED display
USB cable
