Description

 5m cable No Connector

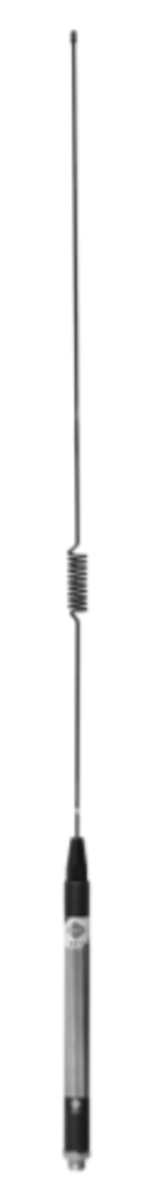

The CD93 Series are high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted, high above a vehicle, and delivers a full 6.5dB of gain over a 1/4 wave whip

Features:

• Totally ground plane independent

• Elevated feed boosts radiating element above obstructions

• Phasemaster™ whip section provides superior performance and strength

• Quality construction – choke assembly is crafted from chrome plated solid brass

• Can be used with a variety of mounts.

(1) Mopole antennas such as the CD93 have been shown to exhibit a 6.5dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2dB over a ¼ wave (equivalent to 1.5-2dBi). This improvement in performance can be attributed to a lower radiation angle level of these ground independent antennas.

(2) Available pre-terminated with 5M RG58 cable. Use -73 to replace -70 suffix.
