RFI CD29 3dB 148-174 Mhz VHF Antenna


Availability: Out of stock SKU: CD29-148174-53 Category: Tag:

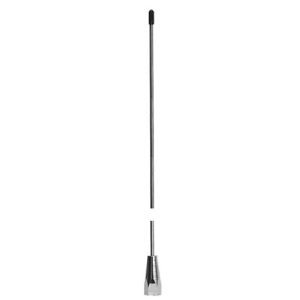

RFI CD29 Broadband VHF Ground Independent Mopole 148-174 MHz – MBC Base & 5M Cable

The CD29 Series antennas provide greater bandwidth coverage without sacrificing antenna performance. Their no tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while improving overall coverage of the desired frequencies.

The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered stainless steel highly flexible whip. The CD29 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades.

CD29-148174-53 Features:

– Ground plan independent design allows alternative mounting locations
– Ultra broadband coverage mean no tuning in the field
– Highly flexible tapered stainless steel whip
– Base is virtually indestructible


Band148-174 MHzTunable BandwidthFullNominal Gain dBq4Power W25Cable and Connector5M RG58C/U cable / no connectorWhip MaterialFlexible tapered stainless steel whipSuggested InstallationBracketWhip Length mm829VSWR<1.8:1MountingMBC (PL259) base
